Net Zero & Energy Saving with SmartBox

PRODUCT

SmartBox Blue

The smartest Immersion cooling system

Based on OCP specifications, Bluebean can deliver cooling performance from 50 kW to 100 kW and servers from 21U to 42U.

It is used in various computer rooms and data centers and can be applied to existing cooling water piping lines.

Model name	SmartBox Blue
Purpose	For cooling and installation of server heat
Type	lmmersion Cooling
Quantity	1
Installation Location	Server Room
Standard	Width	W,mm		2100
	Depth	L,mm		900
	Height	H,mm		1160
IT Capacity	U		21OU
Product Weight	kg		951
Operating Weight	kg		1481
Power	Ph-V-Hz		3상-380V-60Hz
Power Consumption	kW		1.5

SmartBox Red

Efficient choice for edge computing

It is an all-in-one system that merges the tank and the cooling device and works as soon as you plug it in.

It can be used indoors and outdoors, has cooling performance of 4 to 7 kW and can apply servers up to 6U.

Model name	SmartBox Red
Purpose	For cooling and installation of server heat
Type	lmmersion Cooling
Quantity	1
Installation Location	Server Room
Standard	Width	W,mm	1500
	Depth	L,mm	850
	Height	H,mm	1350
IT Capacity	OU	6U
Powershelf	OU	AC type
Plate heat exchanger capacity	kW	4kW@△T8ºC Less than
Flow rate of refrigerant	LPM	20
Coolant flow rate	LPM	14LPM@32ºC Less than
Noise	dBA	-dBA@Rated operation
Product Weight	kg	499
Operating Weight	kg	700
Server Weight	kg	133
Power	Ph-V-Hz	3Phase-380V-60Hz
Power Consumption	kW	2.95

TECHNOLOGY

Eco-friendly Green Data Center 'PUE 1.0x'

Next Generation Cooling Solutions Immersion Cooling
Supports further improved performance.

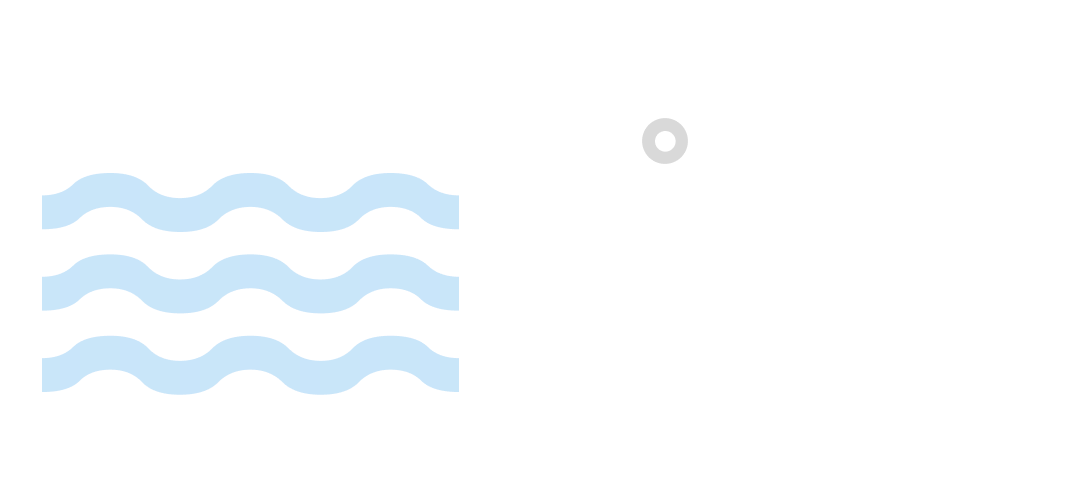

Immersion Cooling Operation Principle

SmartBox is a system that cools IT devices completely by immersing them in a nonconductive liquid refrigerant, and cools the heat absorbed by the refrigerant with a dry cooler or a cooling tower. All fans of the server are removed because they are immersed in the liquid.

Expected Effect of Immersion Cooling System

This is a number that can be expected when introducing Immersion Cooling.

Energy costs

When introducing emulsion cooling Reduce data center operating electricity
costs by 30%

Construction costs

In the case of new construction through the removal of air conditioning facilities
CAPEX 30% reduction

Server life

Number one cause of failure of equipment,
Improve equipment life through removal of heat and vibration

1

Data Center PUE ≤ 1.1 Achievement

2

Cooling Electricity Bill 80% Reduction

3

CO2 Emissions 40% Reduction

4

Construction Costs 30% Reduction

5

Water Usage 8 million tons/MW Saving

6

Server life
Expectancy 30% Increase

7

Space
utilization 2x Increase

8

Waste heat heating Hot water reuse

9

Noise reduction Background noise level
35dB(A)

PROJECT

Enhanced stability & dynamic stability / Reduce cost and complexity / Increased space efficiency
Increased energy efficiency / Strengthening sustainability & supporting ESG management
DataBean's SmartBox will meet the needs of data center users and operators.

데이터빈 Lab

Capacity

Period

Server

50kW

2022.07 ~

SMC CPU
Capacity

Period

Server

6kW

2023.03 ~

SMC 6018TR-TF 1U X 14EA
Capacity

Period

Server

50kW

2023.05 ~ 2023.12

OCP서버 1U(3node) x 2EA
데이터빈 Lab

Capacity

Period

Server

5kW

2023.10 ~

SMC CPU
Capacity

Period

Server

5kW

2023.11 ~

국내생산서버 4U_2kW(엘텍)
CPU+GPU(쿼드로 P500 D5X)

COMPANY

Open source-based Modeling & Data Collection, Advanced Monitoring Solution, Provides an integrated analysis platform for big data.
Currently, we have established ourselves as the first mover of immersion cooling solutions and engineering services in Korea.

Monitoring &
Data Collection

IT Asset Monitoring

IT Ops
Automation

Custom dashboard,
Operational automation
solutions
including reports and
notification services

Advanced
Monitoring

CPU and MEM usage,
Software installation,
Patch information
port map analysis

Big Data
Analysis

Big data integrated
analysis platform,
Machine learning through
deep learning
Big data monitoring to

Immersion
Cooling

Data Center
Immersion Cooling Solution

Databin Co., Ltd. has been established since its establishment in 2016, IT infrastructure using open source Starting with smart monitoring technology, we have been developing solutions specifically for data centers. Currently, we are focusing on opening up new possibilities in the IT industry with immersion cooling technology, an eco-friendly next-generation server cooling solution for data centers.

2021.12 Selected as Samsung C&Ts ‘win-win partner’
2021.06 Selected as a start-up leap package support project
2020.09 Launch of immersion cooling solution ‘SmartBox’
2019.09 Launch of monitoring solution ‘Datamon’
2016.09 Establishment of Databin

2023.05 Promoting immersion cooling demonstration project with Samsung Electronics, Samsung C&T
2023.04 Selected as an R&D project by the Ministry of Science and ICT
2023.03 TIPS Program Selection
2022.07 Obtained SmartBox K mark certification
2022.07 SparkLabs selected as ‘Accelerator Program’
